Vulcano PU R FR

Click to enlarge

Please phone or request a quote for price and current availability

Product Description

Colour: Clear PU with PU coated coppered steel spiral

Temperature Range: -40°C+90°C (+125°C short time)

Suitable for:
Applications: Abrasion
Size Range: 25mm ID to 406mm ID

Product Details

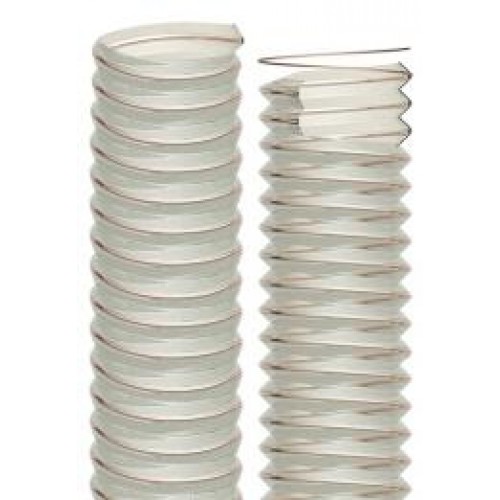

Technical Features: Ester based Polyurethane duct reinforced with a PU coated coppered steel spiral. Wall thickness from 0,4 to 0,75mm.

Properties: Very light and flexible, easy to handle. The PU-coated spiral allows more bending sessions, thus the duct has good mechanical performance and it is especially suitable for dynamic applications. Halogens free conform to RoHS and phthalates free.

Standards: It can be made electrically bonded by earthing the steel spiral in accordance to TRB S 2153.  The electrical resistance R ≤ 102Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC).

For dry food only according to EU Regulation 10/2011, RoHS 2011/65/EU Directive, REACH Regulation (1907/2006).

Application Fields

Suction of granules, abrasive powders, pellets in woodworking, dust extraction. It is also suitable in food industry for suction of dry food only.
