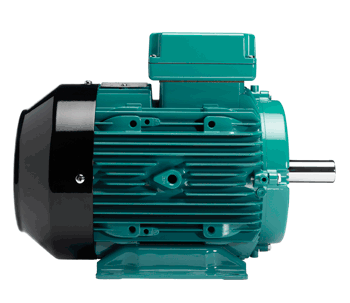

Crompton Greaves Aluminium 2 Pole 3 Phase
Click to enlarge
Please phone or request a quote for price and current availability
Product Description
Crompton Greaves Aluminium 2 Pole (2800rpm) 3 Phase IE2 (High Efficiency) Motors
- Aluminium Multimount 56-132 Frames, IP55, 50hz/60hz
- Standard Voltages below 4kw; 230/400v
- 4kw and above 400/690v
- Pressed Steel (virtually unbreakable) Feet
- SKF Bearings
- 150c thermistors fitted on frame sizes 56-112
- 160c thermistors on frame sizes 132-160
- Full 1 year return to base manufacturers warranty
- Bearing located at Non Drive-end
- CSA and Veritas approval
Product Details
Available in sizes
- CG IE2 0.18kw 2 Pole 3 ph GD63 frame - 11mm shaft
- CG IE2 0.25kw 2 Pole 3 ph GD63 frame - 11mm shaft
- CG IE2 0.37kw 2 Pole 3 ph GD71 frame - 14mm shaft
- CG IE2 0.55kw 2 Pole 3 ph GD71 frame - 14mm shaft
- CG IE2 0.75kw 2 Pole 3 ph GD80 frame - 19mm shaft
- CG IE2 1.1kw 2 Pole 3 ph GD80 frame - 19mm shaft
- CG IE2 1.5kw 2 Pole 3 ph GD90S frame - 24mm shaft
- CG IE2 2.2kw 2 Pole 3 ph GD90L frame - 24mm shaft
- CG IE2 3kw 2 Pole 3 ph GD100L frame - 28mm shaft
- CG IE2 4kw 2 Pole 3 ph GD112m frame - 28mm shaft
- CG IE2 5.5kw 2 Pole 3 ph GD132S frame - 38mm shaft
- CG IE2 7.5kw 2 Pole 3 ph GD132m frame - 38mm shaft
Mounting options
- B3 Foot mounted
- B5 Flange mounted
- B14 Face mounted
- B35 Foot and flange mounted
- B34 Foot and face mounted
